Description

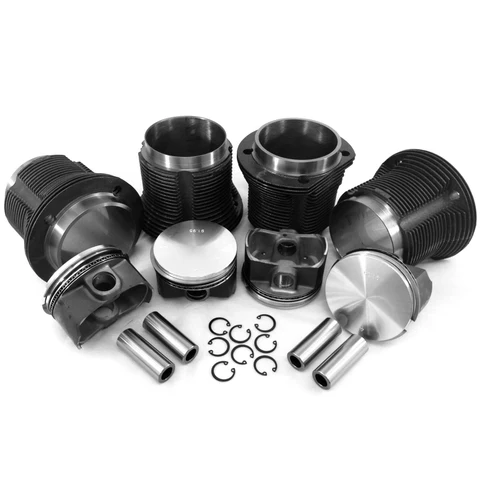

This is a new set of 94mm VW air-cooled Type 1 pistons and cylinders. This kit requires machine work on the cylinder heads and case. Fits 94 case and 94 heads. The 39.80mm compression height will work with small stroked cranks 69, 74, and 76.
Engine size: 1915cc with 69mm crank
Stroke: 69 to 76mm
Cylinders: Cast iron
Pistons: Hypereutectic
Compression Height: 39.80mm
Kit includes: 4 cylinders, 4 pistons, 1 set of piston rings, 4 pins, and clips.
Part#: VW9400T1
Ready to Run Option!
Our Ready to Run option takes the guesswork out of prepping your piston and cylinder set for installation!
We balance the pistons, rings, and pins within one gram, measure piston and cylinders to match tolerance as close as possible with the set and label according to cylinder (Tightest tolerance starting with #1, #2, #4 then #3), Gap piston rings for street use (message us at time of order if you want custom ring gaps) cut the flashing out of the cooling fins for proper cooling, and apply a light flat black coat of paint to the barrels to prevent rust. We lightly coat the cylinder crosshatch with oil and load the oil ringlands with our own mix of oil to aid in break in.
