Description

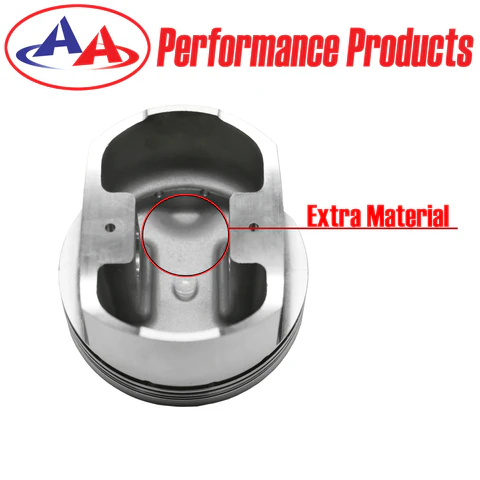

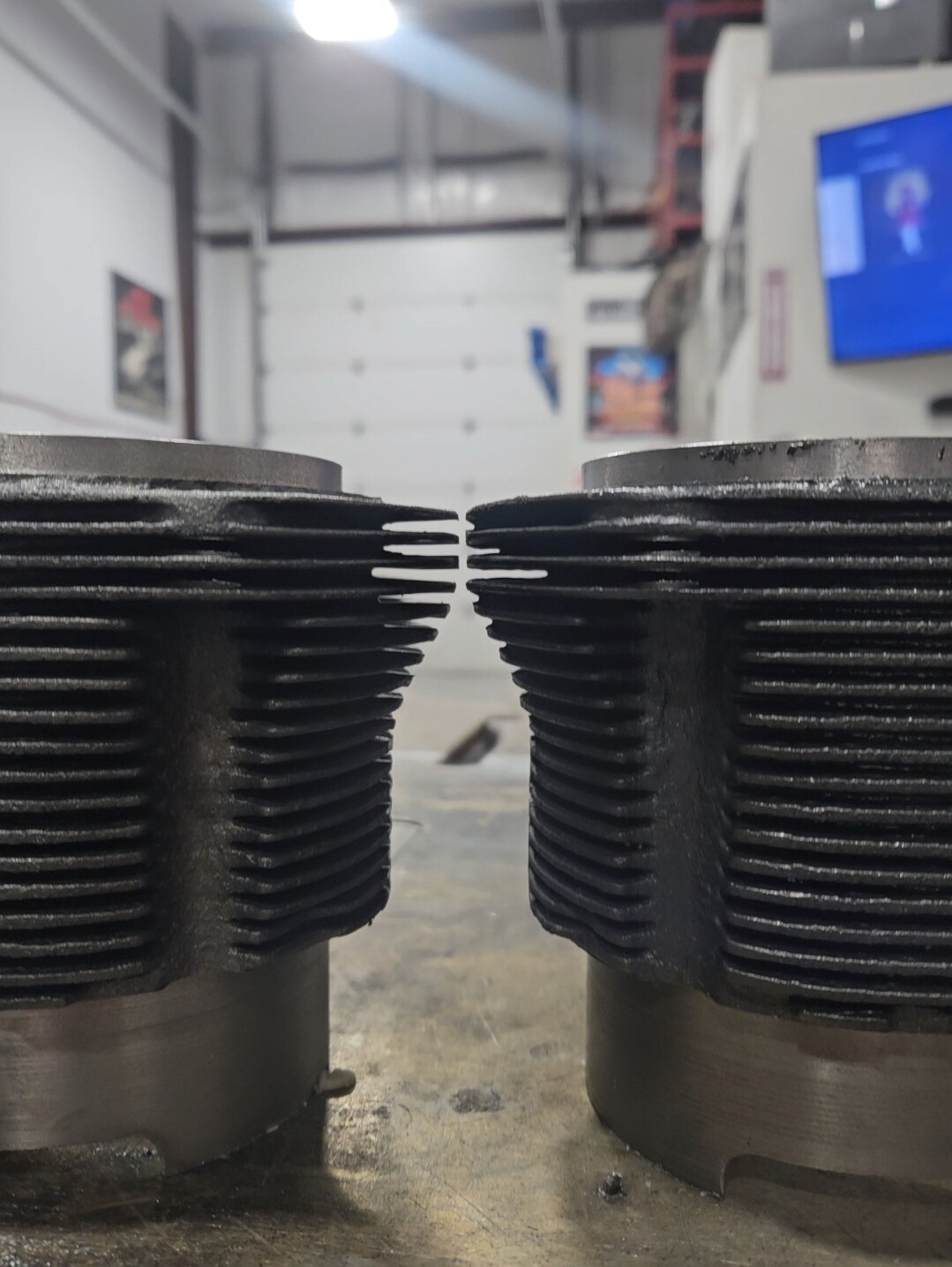

This is a new set of 92mm Forged Pistons with Thick wall cylinders. AA Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top so that valve pockets can be cut into them. The Cylinders are a full 2mm thicker than a standard 92mm cylinder. Perfect for those who want the ultimate in cooling or strength for High Performance applications This kit does require machine work on the cylinder heads and case; Fits 94 Case, 94 Heads. The 35mm Compression Height will work with larger stroked cranks 78, 80, 82, 84, and 86.

Engine size: 2180cc with 82mm crank

Stroke: 78 to 86

Cylinders: Cast Iron

Pistons: 2618 Forged

Compression Height: 35mm

Kit includes: 4 Cylinders, 4 Pistons, 1 set of Piston Rings, and 4 Pins and clips.

Part # VW9200T1MSF

**Machine Work Required**

Ready to Run Option!

Our Ready to Run option takes the guesswork out of prepping your piston and cylinder set for installation!

We balance the pistons, rings, and pins within one gram, measure piston and cylinders to match tolerance as close as possible with the set and label according to cylinder (Tightest tolerance starting with #1, #2, #4 then #3), Gap piston rings for street use (message us at time of order if you want custom ring gaps) cut the flashing out of the cooling fins for proper cooling, and apply a light flat black coat of paint to the barrels to prevent rust. We lightly coat the cylinder crosshatch with oil and load the oil ringlands with our own mix of oil to aid in break in.
