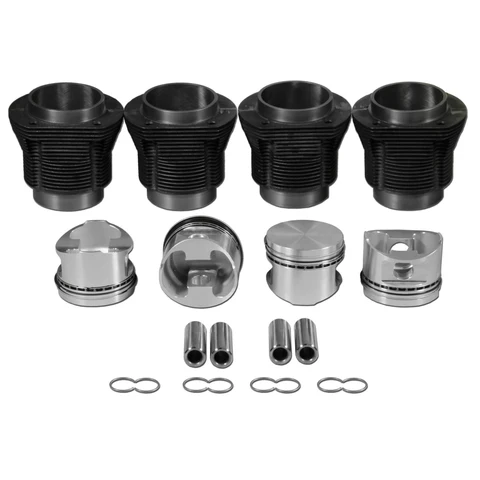

85.5x69mm 1600cc Forged JE P&L Kit w/ Standard Cylinders

Description

Description:

This is a new set of 85.5mm with forged JE Pistons and cylinders for the Type 1. The JE Piston is a copy of the score legal Mahel piston featuring:

• Compression height – 1.553
• Weight – 411 grams
• Pin offset
• Wire-locks for extreme RPM’s
• Built to use in Class 1, 2, and 5 1600 buggy’s and Formula V 1600 Classes.

Engine size:1600cc

Stroke:69mm

Cylinders:Cast Iron.

Pistons:2618 Forged

Compression Height:39.5mm

Kit includes:4 Cylinders, 4 Pistons, A set Piston Rings, and 4 wrist pins and clips.

Part #VW8550T1 JE

Ready to Run Option!

Our Ready to Run option takes the guesswork out of prepping your piston and cylinder set for installation!

We balance the pistons, rings, and pins within one gram, measure piston and cylinders to match tolerance as close as possible with the set and label according to cylinder (Tightest tolerance starting with #1, #2, #4 then #3), Gap piston rings for street use (message us at time of order if you want custom ring gaps) cut the flashing out of the cooling fins for proper cooling, and apply a light flat black coat of paint to the barrels to prevent rust. We lightly coat the cylinder crosshatch with oil and load the oil ring lands with our own mix of oil to aid in break in.
