Description

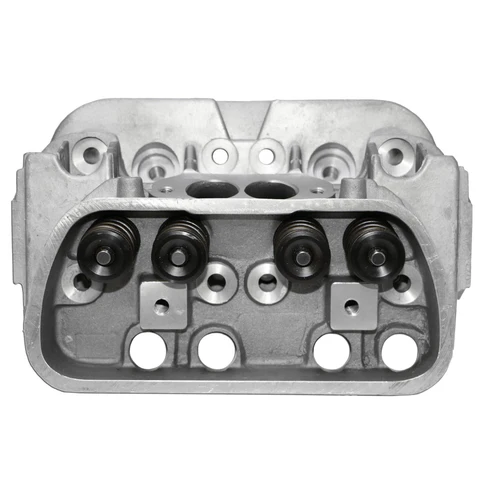

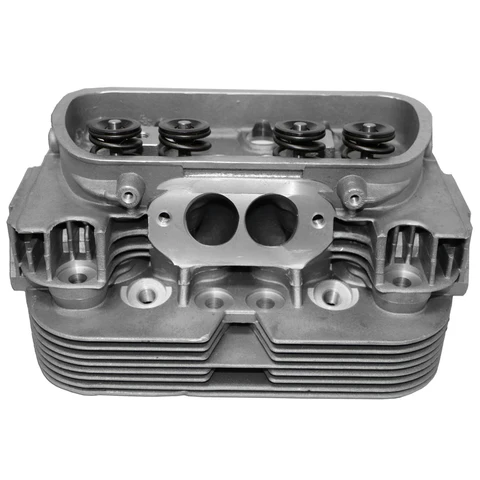

This is a brand new Set of 501 High Performance Cylinder Heads for a VW Type 1 2 or 3 Dual Port. Heads comes with Stainless Steel 40mm Intake and a Stainless Steel 35.5mm Exhaust Valves, with Harden Keepers, Chromoly retainers, and Single high rev springs. They are ready to install.

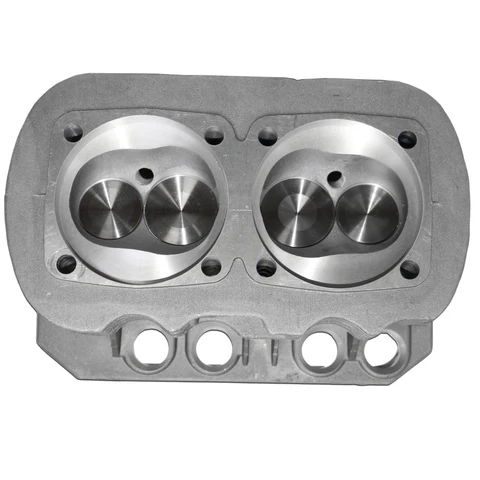

The 501 Series Castings come STD with: Increased material at the intake surface giving you the ability to make much bigger ports. A modernized Combustion chamber, for increased head flow & performance. A second Full Fin, so you can Fly cut your heads deeper to achieve almost any desired Head CC volume needed. Blocked off rocker stud bosses, to eliminate the O-ring and stop possible oil leaks. Long reach 3/4 Inch Spark Plugs, to reduce the chance of cracking between the Valve seat and Plug.
Engine: VW Type 1 2 and 3 1600 Dual Port
Springs: Single or Dual High rev
Casting: AA Performance 501
Plug Size: 12mm (ReplacementNGK Number is D8EA)
Head CC’s:55
Bore: 85.5, works with 85.5,87, and 88 slip in kits
Bore: 92, works with 88 thick wall, 90.5 and 92mm kits
Bore: 94, works with 92 thick walls K and M, and 94mm kits
Please Pick Bore size, and Spring Upgrade when ordering Above
