Description

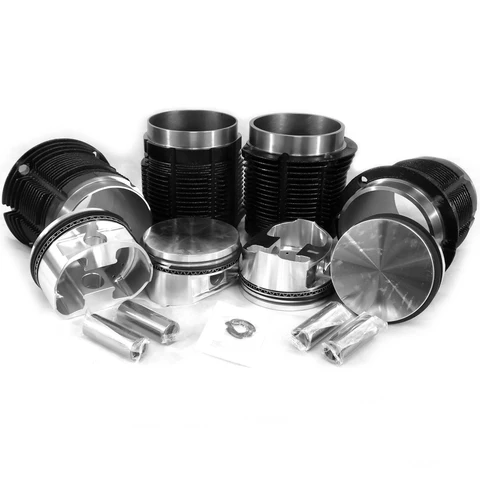

This is a new set of 101.6 JE Forged Pistons andCylinders, The Biggest of the Big Bores. JE Forgings are made from 2618 Aluminum. They have a 0 offset with extra material under the top so that valve pockets can be cut into them. AA 101.6. This kit requires Special Case and Heads that will except the wider stud pattern. The Cylinders are longer and was Designed to be “cut to fit” for long stroke or long rod engines. They are also per cut for 6 stud heads.
Bore: 101.6mm / 4 Inch
Stroke: B stroke pistons
Cylinders: Long 6 Stud Cast Iron
Pistons: JE forged
Compression Height: 34.29mm
The new set includes: 4 pistons, 4 cylinders, 4 pins, clips and a set of rings
Part # VW101T1JE
***Machine Work Required***
Ready to Run Option!
Our Ready to Run option takes the guesswork out of prepping your piston and cylinder set for installation!
We balance the pistons, rings, and pins within one gram, measure piston and cylinders to match tolerance as close as possible with the set and label according to cylinder (Tightest tolerance starting with #1, #2, #4 then #3), Gap piston rings for street use (message us at time of order if you want custom ring gaps) cut the flashing out of the cooling fins for proper cooling, and apply a light flat black coat of paint to the barrels to prevent rust. We lightly coat the cylinder crosshatch with oil and load the oil ring lands with our own mix of oil to aid in break in.
