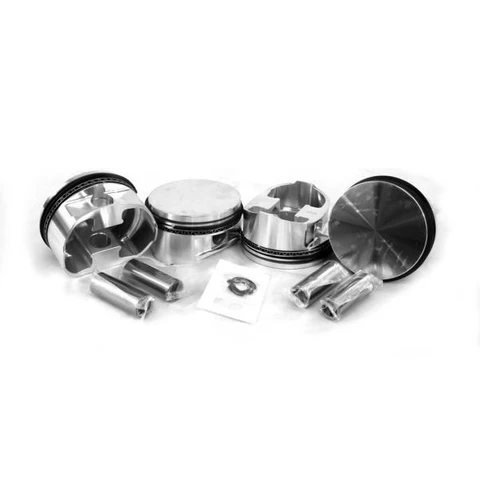

101.60mm JE Forged Piston Kit aka 4-inch

Description

Description:

This is a new set of 101.6mm JE Forged Pistons. The Biggest of the Big Bores. JE Forgings are made from 2618 Aluminum. They have a 0 offset with extra material under the top so that valve pockets can be cut into them.

Bore: 101.6mm / 4 Inch

Stroke: B stroke pistons

Pistons: JE forged

Compression Height: 34.29mm

The new set includes: 4 pistons, 4 pins, clips and a set of rings

Part # VW101T1P JE

Ready to Run Option!

Our Ready to Run option takes the guesswork out of prepping your piston and cylinder set for installation!

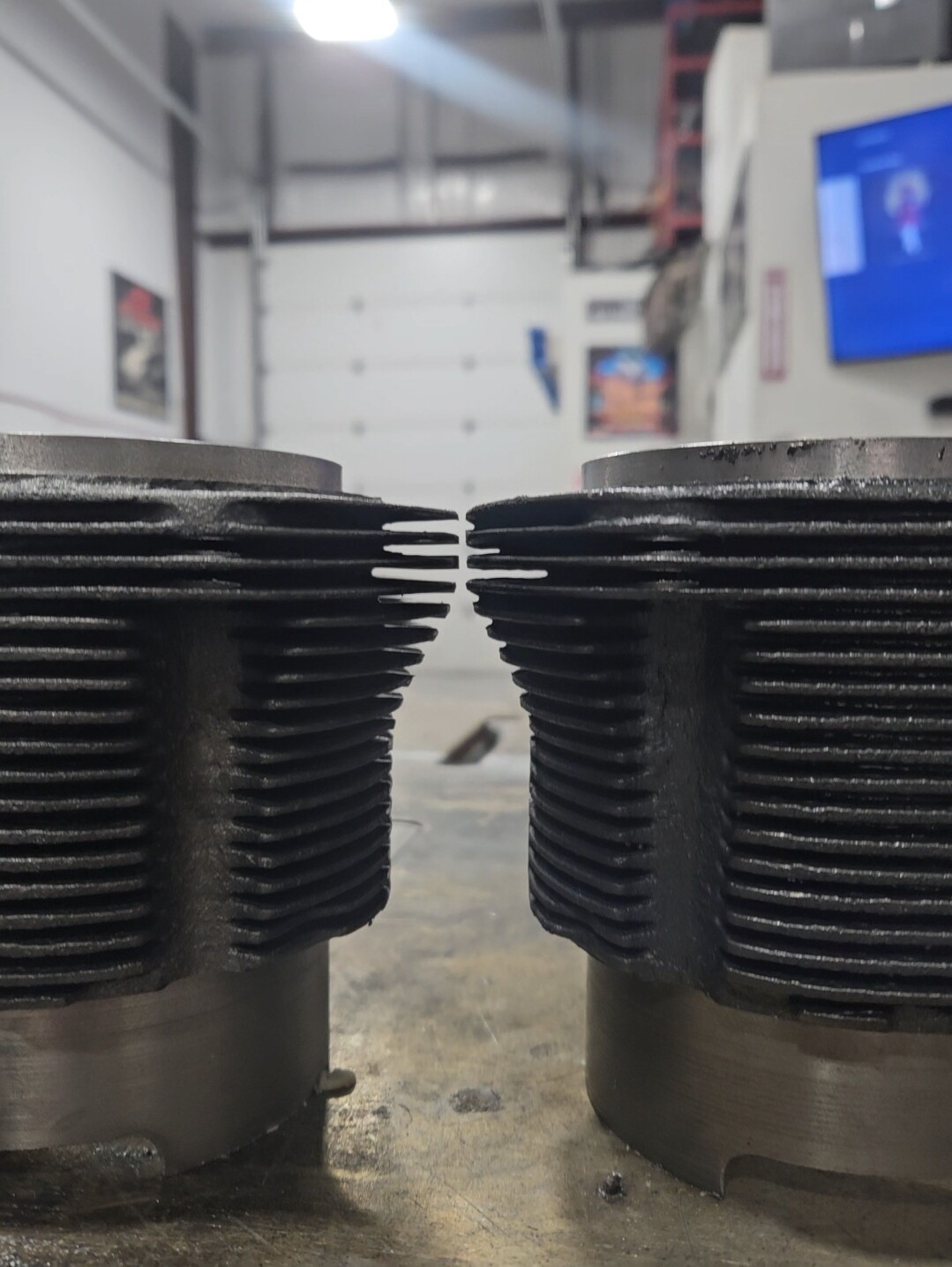

We balance the pistons, rings, and pins within one gram, measure piston and cylinders to match tolerance as close as possible with the set and label according to cylinder (Tightest tolerance starting with #1, #2, #4 then #3), Gap piston rings for street use (message us at time of order if you want custom ring gaps) cut the flashing out of the cooling fins for proper cooling, and apply a light flat black coat of paint to the barrels to prevent rust. We lightly coat the cylinder crosshatch with oil and load the oil ringlands with our own mix of oil to aid in break in.
